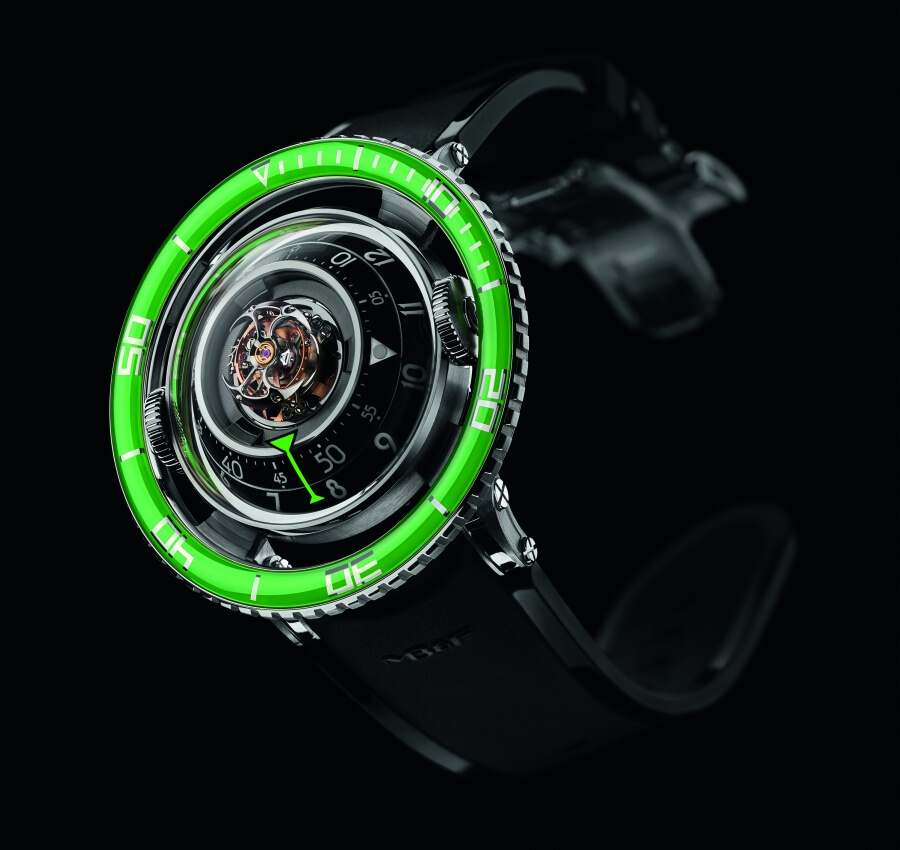

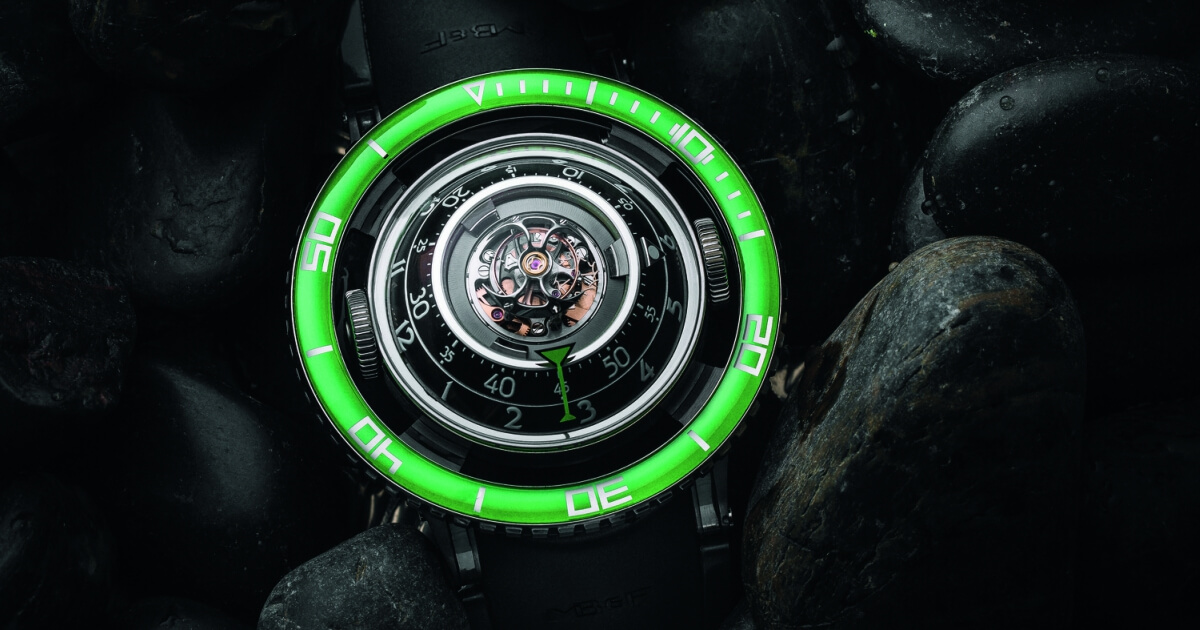

First launched in 2017 – in red gold with black ceramic bezel, and in titanium with blue ceramic bezel – HM7 is back in a titanium case with a green sapphire crystal bezel, limited to 50 pieces.

 MB&F Horological Machine No.7 Aquapod Titanium Green
 MB&F Horological Machine No.7 Aquapod Titanium Green

After pushing the boundaries of horological exploration by blasting into outer space (HM2, HM3, HM6), launching into the sky (HM4), and powering down the road and around the track (HM5, HMX, HM8), MB&F plunges into the water with Horological Machine No.7, aka HM7 Aquapod.

The organic jellyfish-inspired design of HM7 Aquapod is counter-balanced by the very mechanical horology within: a central flying tourbillon tops the concentric vertical movement architecture, with indications radiating out from the centre like ripples in a pond.

The New  MB&F Horological Machine No.7 Aquapod Titanium Green
 MB&F Horological Machine No.7 Aquapod Titanium Green



HM7 Aquapod began its gestation as a horological jellyfish, and the architecture of its Engine is appropriately biomorphic. Jellyfish are radially symmetric, Aquapod is radially symmetric. Where a jellyfish generates power from food caught in its tentacles, HM7 generates power from its tentacle-like automatic winding rotor.

Where jellyfish have a radially symmetric ring of neurons for a brain, Aquapod has radially symmetric rings displaying hours and minutes. Where jellyfish have a hood or bell on top, HM7 Aquapod has an imposing flying tourbillon regulating the power generated by the rotor, and transforming it into the display of time.

The winding rotor’s tentacles are crafted from a solid block of titanium; their very three-dimensional nature makes machining and finishing extremely challenging. Underneath the tentacles, a platinum mass ensures powerful and efficient winding.

 MB&F Aquapod Titanium Green
 MB&F Horological Machine No.7 Aquapod Titanium Green

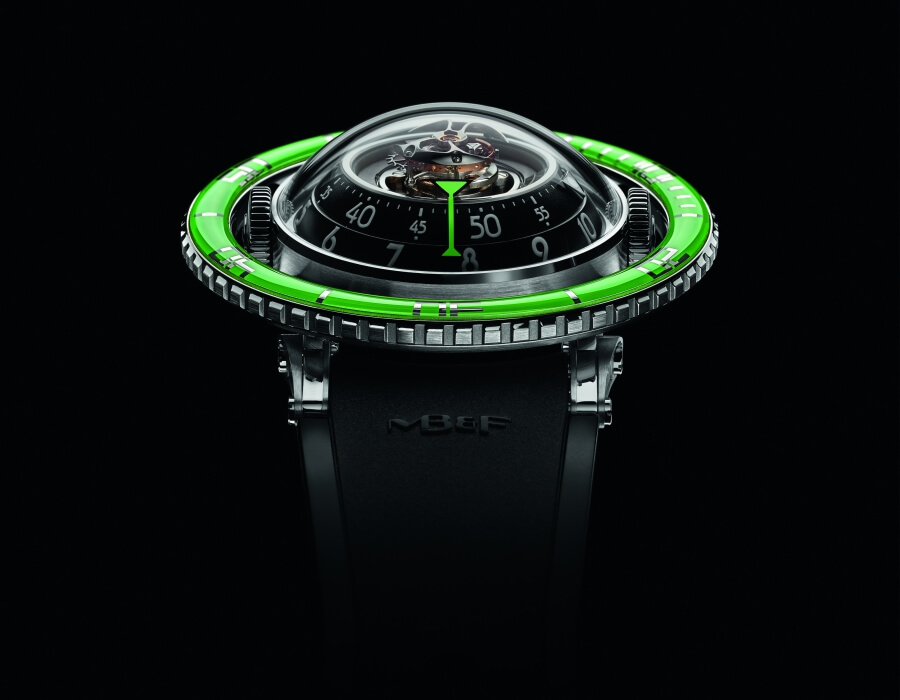

And then there's that bezel. While Horological Machine No.7 is not a dive watch, it is a timepiece comfortably at home in the water – so MB&F added the one element that all serious aquatic watches possess: a unidirectional rotating bezel. However, unlike every other dive watch on the planet, Aquapod's bezel isn't attached to the case, but floats apart like a life buoy.

The 303-component, 72-hour power reserve HM7 Engine was developed in-house by MB&F. Spherically three-dimensional, all its mechanisms – from the winding rotor at the bottom, past the mainspring barrel and hour and minute displays, to the flying tourbillon on top – rotate concentrically around the centre. The curves of the high-domed sapphire crystal are mirrored in the shape of the time display rings, which are not simply flat and angled, but are mathematically precise, curved spherical segments.

 MB&F In House Movement HM7
 MB&F Caliber HM7

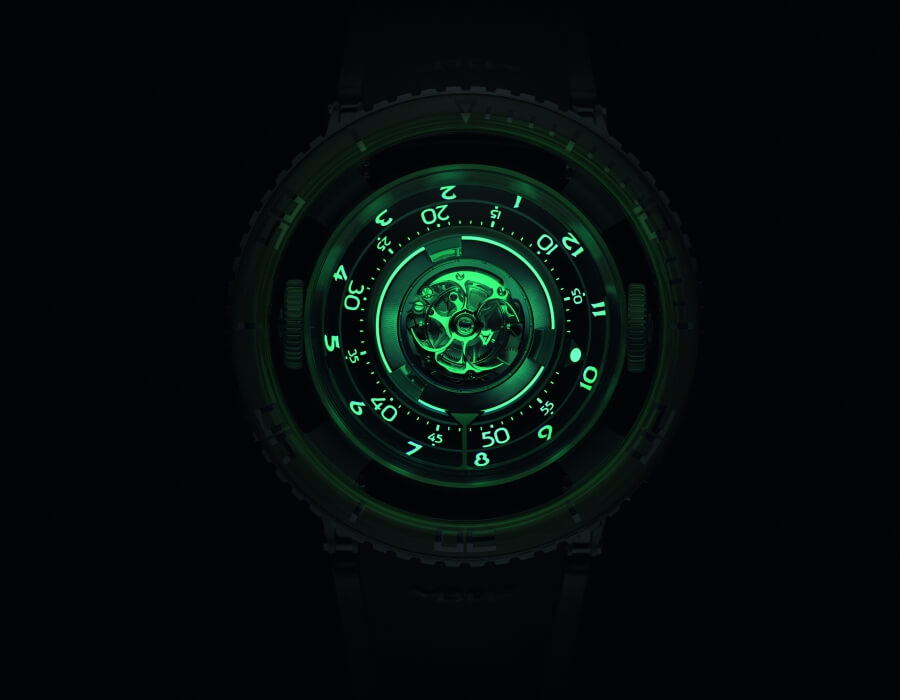

And, like many jellyfish, HM7 glows in the dark. It glows where you would expect it to – on the hour and minute numerals – but also around the inside of the movement, to light up that flying tourbillon at night… and in addition, along the tentacle-like winding rotor so that its operation, too, can be appreciated in the dark.

HM7 Aquapod is available in 3 limited editions: titanium with blue ceramic bezel limited to 33 pieces, red gold with black ceramic bezel limited to 66 pieces, and titanium with green sapphire crystal bezel limited to 50 pieces.

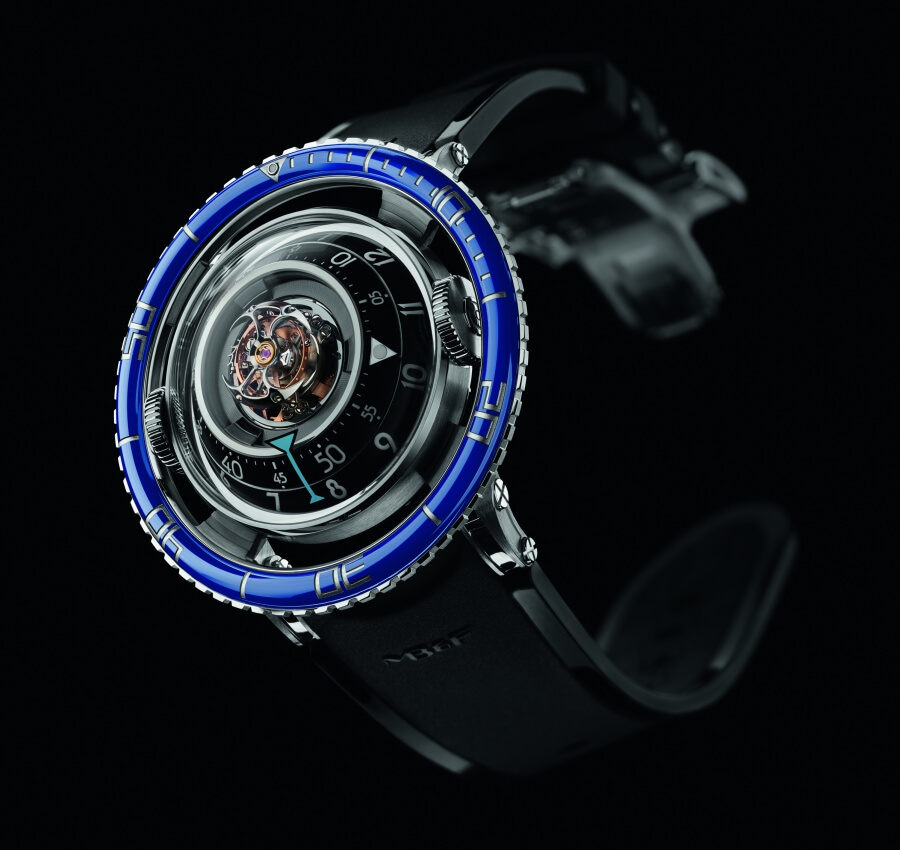

MB&F Horological Machine No.7 Aquapod Titanium Blue
MB&F Horological Machine No.7 Aquapod Titanium Blue

HM7 Aquapod in detail

Inspiration

The idea for an aquatic watch originated from MB&F founder Maximilian Büsser’s memories of family beach holidays, which included an encounter with a jellyfish. While the encounter may have been minor, the seed it planted in Büsser's brain for a three-dimensional timepiece powered by tentacles was anything but. And even though the concept for Horological Machine No.7 came relatively quickly, the development took many years. So many years of development were necessary that, perhaps confusingly, HM8 ended up launching before HM7.

 MB&F Movement Aquapod
 MB&F Caliber HM7



Engine

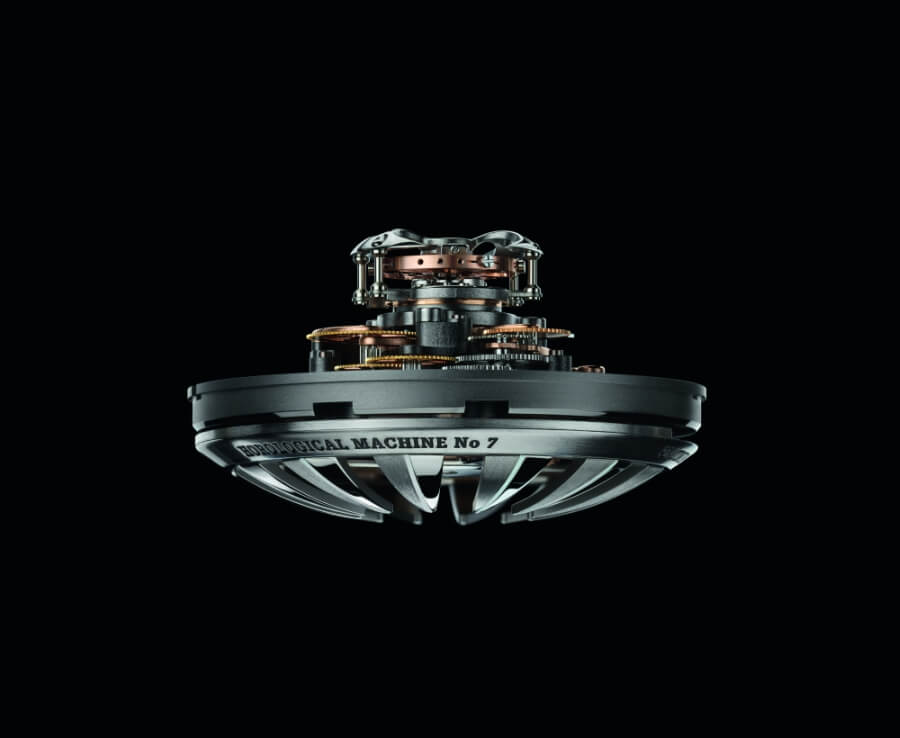

While HM7 Aquapod is as contemporary as could be, the concept of the three-dimensional, spherical movement architecture is centuries old, originating in the "onion" pocket watches popular in the 18th century. Whereas the majority of watch movements are developed horizontally to be as flat as possible, the Engine of HM7 goes up, not out, with all of its components arranged vertically. The movement of HM7 was entirely developed in-house by MB&F.

From bottom to top, the winding rotor, mainspring barrel, hour and minute indications, and flying tourbillon are all concentrically mounted around the central axis. Energy travels from the rotor at the very bottom of the movement to the flying tourbillon regulator at the very top via gearing acting like a series of stairs, allowing power to transition from one level to the next.

This concentric architecture allows for the hours and minutes to be displayed around the periphery of the movement; however, this presented a serious challenge in itself: how to support such large-diameter time display rings? The answer was to develop extra-large diameter ceramic ball bearings, to support the spherical segment hour and minute displays and rotate with a very low coefficient of friction. The spherical segment discs are in aluminium and titanium for both minimum mass and maximum rigidity.

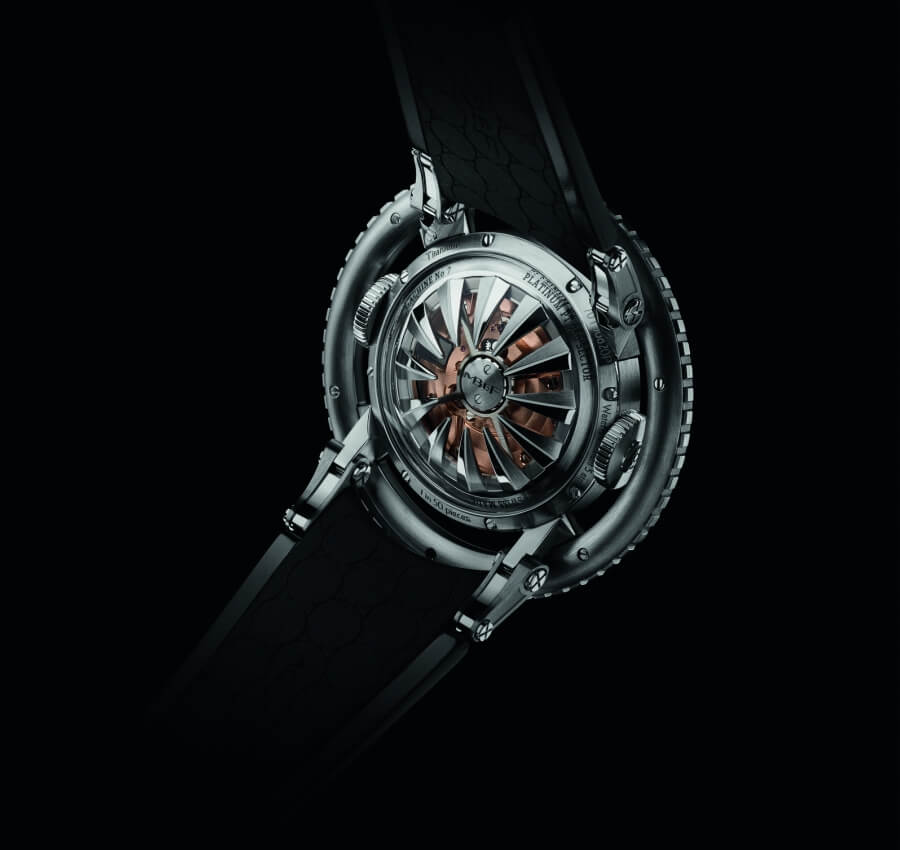

 MB&F Horological Machine No.7 Aquapod Titanium Green Case Back
MB&F Horological Machine No.7 Aquapod Titanium Green

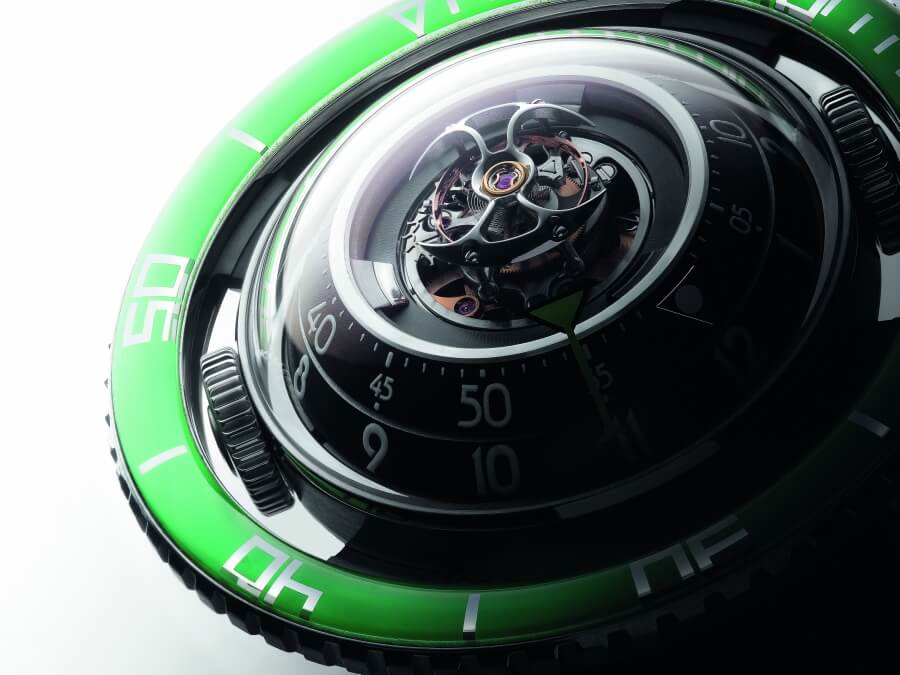

The choice of a flying tourbillon was deliberate as the upper bridge of a normal tourbillon would have necessitated the use of smaller, less legible time-display rings. The continually rotating flying tourbillon regulator at the very top of the movement is positioned for maximum appreciation by day, while three panels of AGT Ultra (Ambient Glow Technology) lume around the inside of the movement illuminate the tourbillon for maximum appreciation by night.

The winding rotor’s tentacles are machined from a solid block of titanium. Their curved, very three-dimensional nature is a manufacturing challenge, both for machining and for finishing, which alternates between polished and satin-finished sections. Hidden underneath the lightweight titanium tentacles, a sector in much heavier platinum ensures that the HM7 Engine is wound efficiently.

Hands On:  MB&F Horological Machine No.7 Aquapod Titanium Green
MB&F Horological Machine No.7 Aquapod Titanium Green

Indications

Hours and minutes are displayed by two spherical segment discs in aluminium and titanium, which are supported by specially developed oversized ceramic ball bearings.

The hour and minute numerals and markers have been hand-painted in Super-LumiNova, making them legible by night. They are hand-painted, because it is impossible to print neatly on such complexly-curved components.

 MB&F Horological Machine No.7 Aquapod Titanium Green Super Liminova
MB&F Horological Machine No.7 Aquapod Titanium Green



Case

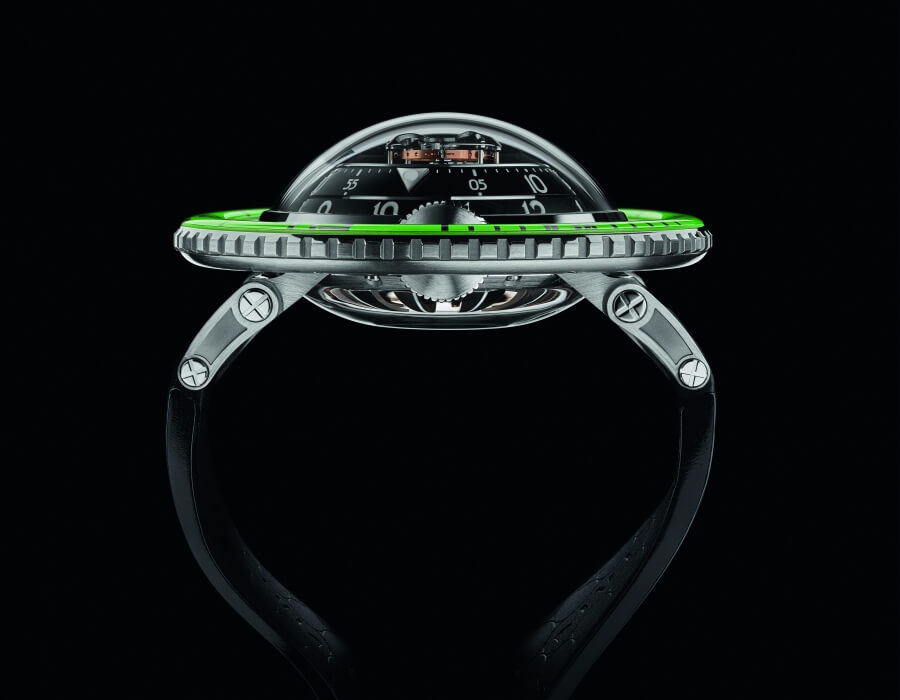

The case of HM7 Aquapod is basically a three-dimensional sandwich comprising two hemispheres of high-domed sapphire crystal on either side of a metal case band. The unidirectional bezel floats outside the case proper, while dual crowns are located between the two structures: the one on the left is for winding the movement (if necessary) and the crown on the right is for setting the time. The large crowns are ergonomically designed for ease of use, even when manipulated with wet fingers.

For the blue and black bezels, the numerals and markers are first engraved in the ceramic using a laser, after which the engraved sections are filled with metalized titanium. The whole ring is then polished to a high gloss. In order to obtain the perfect colour for the green edition, a sapphire crystal ring is inserted in the bezel; numbers and markets are metalized under the sapphire crystal, along with a layer of green lacquer.

The strap in engraved aircraft-grade rubber highlights the casual nature of HM7 Aquapod, ensuring that it looks just as good with jeans and a t-shirt on land as it does with a bathing suit in the water.

Jellyfish

Paradoxically, jellyfish (also known as medusa) are neither fish, nor are they made of jelly; like us they are mainly composed of water. Jellyfish, the oldest multicellular animals on the planet, much older than dinosaurs, are the ultimate in distributed information processing, having no central brain but a connected ring of nerves that takes care of any thinking required. Jellyfish are sensitive to touch, they see and they navigate.

 MB&F Horological Machine No.7 Aquapod Titanium Green Watch Review
MB&F Horological Machine No.7 Aquapod Titanium Green



Jellyfish can be easily cloned: if you cut one in half (not recommended), it will grow into two genetically identical jellyfish. And jellyfish have been in space: in 1991 the space shuttle Columbia took a few jellyfish into space, where they successfully bred.

Jellyfish glow, often quite beautifully. Various species use phosphorescence, luminescence, or bioluminescence to glow, with the aim of either attracting prey or warding off predators. Luminescent tentacles are particularly effective as they have the effect of making a relatively small organism look very large.

Top Expensive Diver Watch
MB&F Horological Machine No.7 Aquapod Titanium Green

MB&F HM7 Aquapod

Technical specifications:

3 limited editions:

·       grade 5 titanium, with blue ceramic bezel and blue lume (33 pieces);

·       18k 5N+ red gold, with black ceramic bezel and blue lume (66 pieces);

·       grade 5 titanium, with green sapphire crystal bezel and green lume (50 pieces).

Engine

Three-dimensional vertical architecture, automatic winding, conceived and developed in-house by MB&F

Central flying 60-second tourbillon

Power reserve: 72 hours

Balance frequency: 2.5 Hz / 18,000 bph

Three-dimensional winding rotor in titanium and platinum

Number of components: 303

Number of jewels: 35

Functions/indications

Hours and minutes displayed by two aluminium / titanium spherical segment discs rotating on oversized central ceramic bearings

Unidirectional rotating bezel for elapsed time

Numerals, markers and segments along the winding rotor in Super-LumiNova

3 panels of AGT Ultra (Ambient Glow Technology) lume around the flying tourbillon

Two crowns: winding on left and time-setting on right

Case

Spherical construction

Material: Grade 5 titanium or 18k 5N+ red gold

Dimensions: 53.8 mm x 21.3 mm

Number of components: 95

Water resistance: 50 m / 150 feet / 5 atm

Sapphire crystals

Top and bottom sapphire crystals treated with anti-reflective coating on both faces.

Strap & buckle

Rubber bracelet moulded in aircraft-grade Fluorocarbon FKM 70 Shore A elastomer with folding buckle matching case material.

The new HM7 Aquapod Ti Green is limited to only 50 pieces.

Retail price is CHF 108,000 + VAT (USD 108k / EUR 100k + VAT).

For more information visit MB&F Online.
